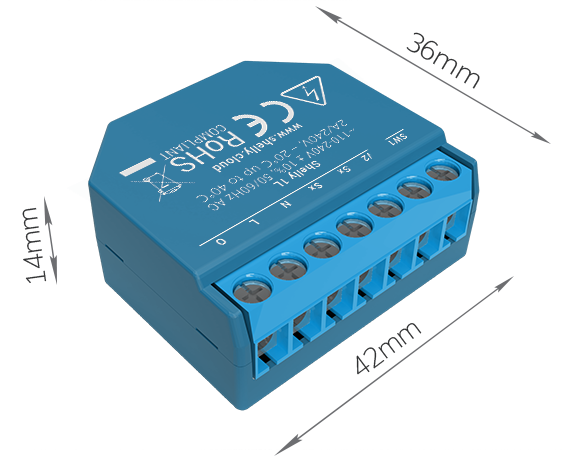

Shelly 1L


No HUB required – Connect Shelly 1L directly to your Wi-Fi at home.

No neutral required

Power on the device and control your light, fan, or other appliances only by Live wire, no neutral required to be connected to the device.

Highly compatible

Compatible with Android, iOS, Amazon Alexa and Google Assistant. Control your appliance with your voice.

Overheating protection

In case of high temperature Shelly1L will switch OFF the output to protect itself and your home appliances.

Sunrise/Sunset schedules

Shelly 1L can automatically follow the sunrise and sunset and control your lighting accordingly.

Weekly schedules

Choose a time and set your lighting to turn on/off or dim precisely when you want it to.

Rest API

Use our REST API to connect Shelly 1L to your existing home automation system.

MQTT enabled

Easily integrate Shelly1L to your existing home server using MQTT or CoAP protocol.

The BEST RETROFIT device EVER made

No electrical wiring changes needed

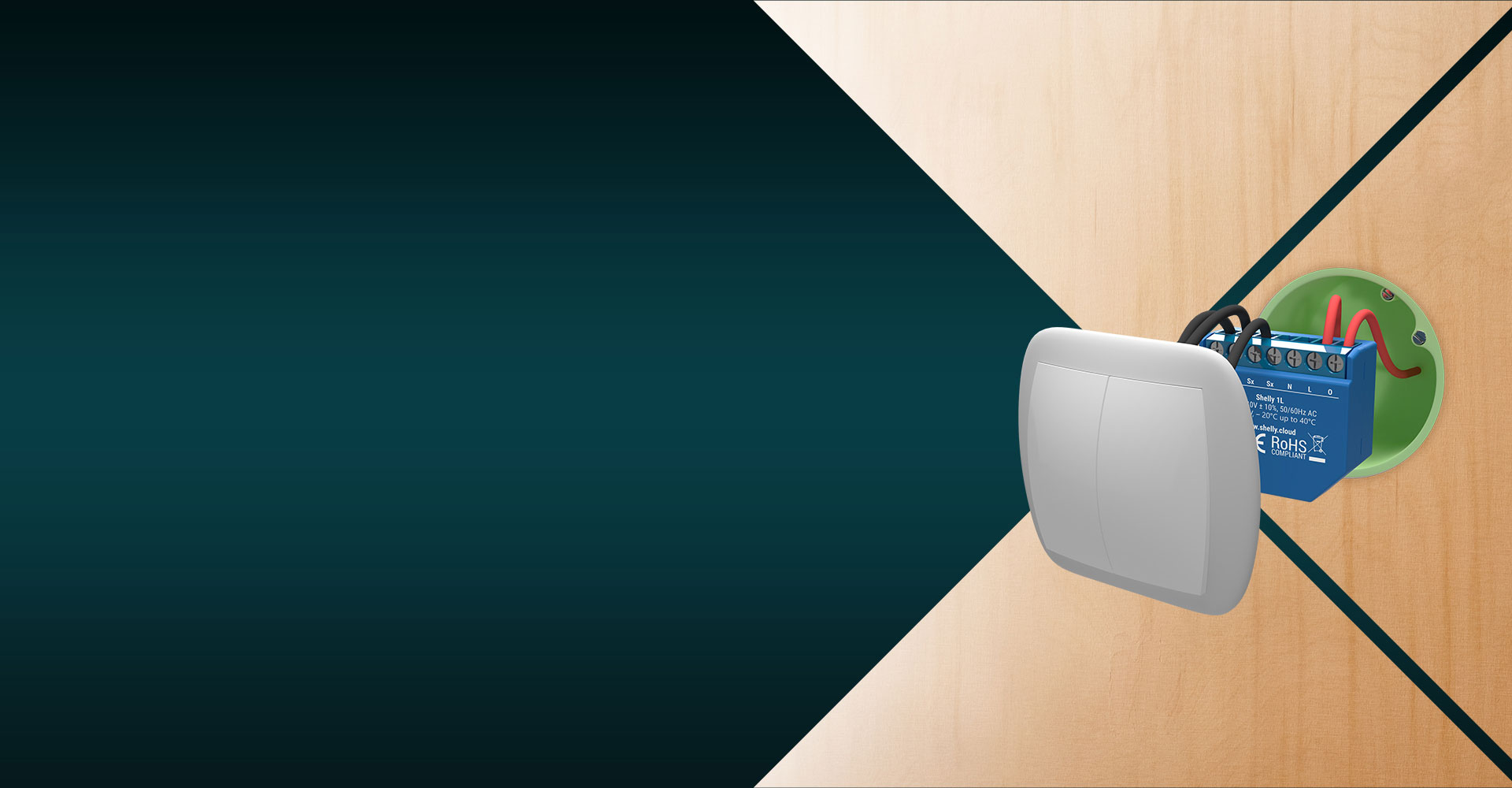

Shelly1L can convert any existing wall switch into a smart switch. You don’t need to change the wiring, to run new cables, or anything else. Just put the shelly behind the existing wall switch.

No neutral line required
Мany light switches are wired with no neutral present, which makes them difficult to automate. Shelly1L handles this problem because it only needs the hot line.

Shelly1L can make any appliance smart

Shelly1L works with any ceiling fan, still no neutral is required.
There is no limit to the type of lights you can use with Shelly1L – LED, Tungsten, Halogen, or Luminescent bulb, can be controlled.

Smart Scheduling

Scheduling Like all Shelly products, the Shelly1L has advanced scheduling features
You can switch it on and off at a certain time, or control your light according to the sunset and sunrise hours. And that’s not all - you can offset your schedule by up to 3 hours before or after sunset/sunrise.

You can set the Auto OFF and Auto ON functions to automatically turn your Shelly1L on or off X minutes after the state changes, which makes Shelly1L the perfect solution when wired to any motion sensor or when you forgot to switch off the lights and walk away.

Control all the lights in your home together

You can create a group of lights and control all of them together with just one click. Plus, each device can be part of more than one group, giving you many control options.

Full Control Without
a Hub or Cloud

Shelly1L has a simple API which allows it to be controlled from any other Shelly or Wi-Fi based device.
You simply need to know the IP address of Shelly1L to send commands to it to change the state from anywhere.

Powerful direct actions

Shelly1L can control any other Wi-Fi device in your home.
You can set a local action into each device that will execute when the switch is toggled or the output state is changed.
As many as 5 actions per Shelly device allow you to control up to 5 other devices at once.


One application countless possibilities

With the best cloud service in the world, user-friendly interface, scenes, bulk control, and much more, the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly app.

Full Compatibility

Shelly devices are compatible with Alexa, Google Home, Android, and iOS. With the voice assistants, you can command Shelly 1L with your voice without having a smartphone around.

"OK Google, turn off the bathroom fan"

“Alexa, turn on the ceiling lights”

"OK Google, turn off the bathroom fan"


Technical characteristics

Supported load type (with and without neutral):

  • Resistive (lights, electric heaters)
  • Inductive (Led Lights, Transformers, Fan, Motors)
  • Capacitive (motor starting capacitors, generators, and synchronous motors)
Min load (no neutral connected, without bypass ): 20W resistive load
Min load (with bypass): None
Min load with neutral present: None
Supported light types:

  • Incandescent lamps
  • Fluorescent lamps.
  • Halogen lamps.
  • Dimmable LED
  • Non Dimmable LED
  • Fluorescent tubes
  • Neon lamps.
Power: 110 – 240 VAC
Max current: 4.1A (1000W)
Max current for short operation: 5A (1200W)

For Developers

Shelly 1L is open to the world and developers. Shelly devices are secured but, at the same time, allow everyone to use them easily in new and existing projects. With the embedded web server and HTTP commands, Shelly can be made compatible with your existing home automation system.

Device pinout ›

Visit our REST API for developers ›
